环信即时通讯 IM Flutter 快速入门
更新时间:2022-06-20
通过本文可以实现一个集成聊天 SDK 的简单 app。
实现原理

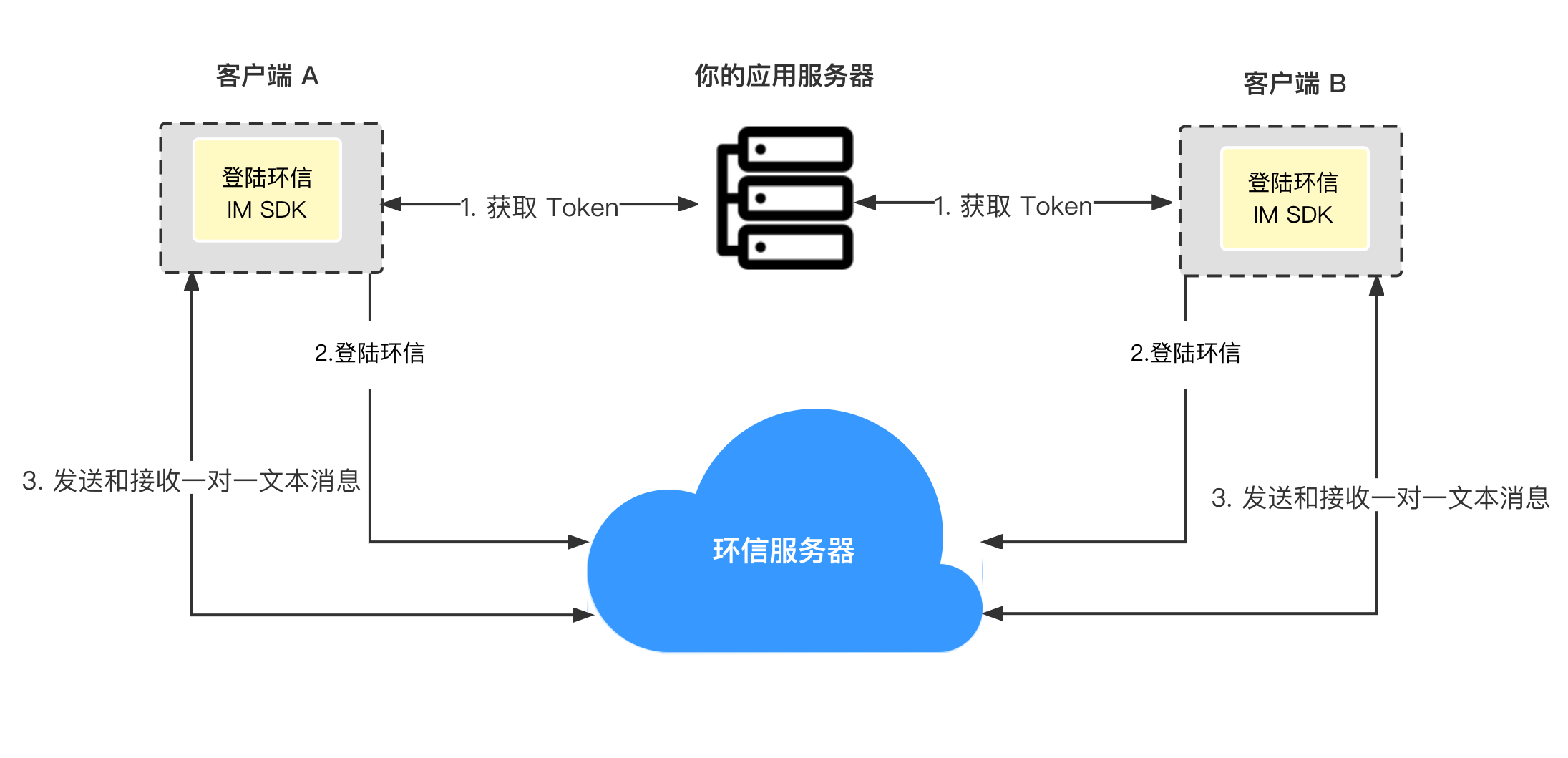

下图展示在客户端发送和接收一对一文本消息的工作流程。
如上图所示,发送和接收单聊消息的步骤如下:
- 客户端向你的应用服务器请求 Token,你的应用服务器返回 Token。
- 客户端 A 和客户端 B 使用获得的 Token 登录环信即时通讯系统。
- 客户端 A 发送消息到环信即时通讯服务器。
- 环信即时通讯服务器将消息发送到客户端 B,客户端 B 接收消息。
前提条件
开始前,请确保你的开发环境满足如下要求:
- Xcode 12.4 或以上版本,包括命令行工具;
- iOS 10 或以上版本;
- Android SDK API 等级 19 或以上版本;
- Android Studio 4.0 或以上版本,包括 JDK 1.8 或以上版本;
- CocoaPods 包管理工具;
- Flutter 2.10 或以上版本;
- Dart 2.16 或以上版本;
配置开发或者运行环境如果遇到问题,请参考这里 - 有效的环信即时通讯 IM 开发者账号和 App Key,详见 环信即时通讯云控制台。
项目设置
使用命令创建项目
打开终端,进入需要创建项目的目录,输入命令进行 flutter create
项目创建:
flutter create quick_start
设置 Android
- 打开文件
quick_start/android/app/build.gradle
在文件最后添加:
android {
defaultConfig {
minSdkVersion 19
}
}
- 打开文件
quick_start/android/app/src/main/AndroidManifest.xml
,在</application>
下添加:
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.WAKE_LOCK"/>
-
在
quick_start/android/app/proguard-rules.pro
中设置免混淆规则:
-keep class com.hyphenate.** {*;}
-dontwarn com.hyphenate.**
设置 iOS
打开文件 quick_start/ios/Runner/info.plist
,然后:
- 添加
App Transport Security Settings
; - 在
App Transport Security Settings
中添加Allow Arbitrary Loads
,值为YES
。
集成 SDK
在终端命令行,输入命令添加依赖:
cd quick_start
flutter pub add im_flutter_sdk
flutter pub get
添加示例代码
打开 quick_start/lib/main.dart
文件,引入头文件:
import 'package:flutter/material.dart';
import 'package:im_flutter_sdk/im_flutter_sdk.dart';
修改 _MyHomePageState
代码:
class _MyHomePageState extends State<MyHomePage> {
// 测试用 Appkey
final String appKey = "41117440#383391";
ScrollController scrollController = ScrollController();
String _username = "";
String _password = "";
String _messageContent = "";
String _chatId = "";
final List<String> _logText = [];
@override
void initState() {
super.initState();
_initSDK();
_addChatListener();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: Container(
padding: const EdgeInsets.only(left: 10, right: 10),
child: Column(
crossAxisAlignment: CrossAxisAlignment.stretch,
mainAxisSize: MainAxisSize.max,
children: [
TextField(
decoration: const InputDecoration(hintText: "Enter username"),
onChanged: (username) => _username = username,
),
TextField(
decoration: const InputDecoration(hintText: "Enter password"),
onChanged: (password) => _password = password,
),
const SizedBox(height: 10),
Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
Expanded(
flex: 1,
child: TextButton(
onPressed: _signIn,
child: const Text("SIGN IN"),
style: ButtonStyle(
foregroundColor: MaterialStateProperty.all(Colors.white),
backgroundColor:
MaterialStateProperty.all(Colors.lightBlue),
),
),
),
const SizedBox(width: 10),
Expanded(
child: TextButton(
onPressed: _signOut,
child: const Text("SIGN OUT"),
style: ButtonStyle(
foregroundColor: MaterialStateProperty.all(Colors.white),
backgroundColor:
MaterialStateProperty.all(Colors.lightBlue),
),
),
),
const SizedBox(width: 10),
Expanded(
child: TextButton(
onPressed: _signUp,
child: const Text("SIGN UP"),
style: ButtonStyle(
foregroundColor: MaterialStateProperty.all(Colors.white),
backgroundColor:
MaterialStateProperty.all(Colors.lightBlue),
),
),
),
],
),
const SizedBox(height: 10),
TextField(
decoration: const InputDecoration(
hintText: "Enter the username you want to send"),
onChanged: (chatId) => _chatId = chatId,
),
TextField(
decoration: const InputDecoration(hintText: "Enter content"),
onChanged: (msg) => _messageContent = msg,
),
const SizedBox(height: 10),
TextButton(
onPressed: _sendMessage,
child: const Text("SEND TEXT"),
style: ButtonStyle(
foregroundColor: MaterialStateProperty.all(Colors.white),
backgroundColor: MaterialStateProperty.all(Colors.lightBlue),
),
),
Flexible(
child: ListView.builder(
controller: scrollController,
itemBuilder: (_, index) {
return Text(_logText[index]);
},
itemCount: _logText.length,
),
),
],
),
),
);
}
void _initSDK() async {
}
void _addChatListener() {
}
void _signIn() async {
}
void _signOut() async {
}
void _signUp() async {
}
void _sendMessage() async {
}
void _addLogToConsole(String log) {
_logText.add(_timeString + ": " + log);
setState(() {
scrollController.jumpTo(scrollController.position.maxScrollExtent);
});
}
String get _timeString {
return DateTime.now().toString().split(".").first;
}
}
初始化 SDK
在 _initSDK
方法中添加 SDK 初始化:
void _initSDK() async {
EMOptions options = EMOptions(
appKey: appKey,
autoLogin: false,
);
await EMClient.getInstance.init(options);
}
添加获取 token 代码
Demo 中使用 token 登录,可以使用测试用服务器获取 token,正式环境中需要使用你的服务器获取 token。
添加依赖库:
cd quick_start
flutter pub add http
flutter pub get
在 quick_start/lib/main.dart
中引入头文件:
import 'dart:convert' as convert;
import 'dart:convert';
import 'package:http/http.dart' as http;
在 quick_start/lib/main.dart
文件末尾添加代码:
class HttpRequestManager {
static String host = "a41.easemob.com";
static String registerUrl = "/app/chat/user/register";
static String loginUrl = "/app/chat/user/login";
static Future<bool> registerToAppServer({
required String username,
required String password,
}) async {
bool ret = false;
Map<String, String> params = {};
params["userAccount"] = username;
params["userPassword"] = password;
var uri = Uri.https(host, registerUrl);
var client = http.Client();
var response = await client.post(
uri,
headers: {'Content-Type': 'application/json'},
body: jsonEncode(params),
);
do {
if (response.statusCode != 200) {
break;
}
Map<String, dynamic>? map = convert.jsonDecode(response.body);
if (map != null) {
if (map["code"] == "RES_OK") {
ret = true;
}
}
} while (false);
return ret;
}
static Future<String?> loginToAppServer({
required String username,
required String password,
}) async {
Map<String, String> params = {};
params["userAccount"] = username;
params["userPassword"] = password;
var uri = Uri.https(host, loginUrl);
var client = http.Client();
var response = await client.post(
uri,
headers: {'Content-Type': 'application/json'},
body: jsonEncode(params),
);
if (response.statusCode == 200) {
Map<String, dynamic>? map = convert.jsonDecode(response.body);
if (map != null) {
if (map["code"] == "RES_OK") {
return map["accessToken"];
}
}
}
return null;
}
}
添加登录
在 _signIn
方法中添加登录代码。
void _signIn() async {
if (_username.isEmpty || _password.isEmpty) {
_addLogToConsole("username or password is null");
return;
}
String? agoraToken = await HttpRequestManager.loginToAppServer(
username: _username,
password: _password,
);
if (agoraToken != null) {
_addLogToConsole("fetch agora token succeed, begin login");
try {
await EMClient.getInstance.loginWithAgoraToken(_username, agoraToken);
_addLogToConsole("login succeed, username: $_username");
} on EMError catch (e) {
_addLogToConsole(
"login failed, code: ${e.code}, desc: ${e.description}");
}
} else {
_addLogToConsole("fetch agora token failed");
}
}
添加退出
在 _signOut
方法中添加退出代码。
void _signOut() async {
try {
await EMClient.getInstance.logout(true);
_addLogToConsole("sign out succeed");
} on EMError catch (e) {
_addLogToConsole(
"sign out failed, code: ${e.code}, desc: ${e.description}");
}
}
添加注册
在 _signUp
方法中添加注册代码。
void _signUp() async {
if (_username.isEmpty || _password.isEmpty) {
_addLogToConsole("username or password is null");
return;
}
bool ret = await HttpRequestManager.registerToAppServer(
username: _username,
password: _password,
);
if (ret) {
_addLogToConsole("sign up succeed, username: $_username");
} else {
_addLogToConsole("sign up failed");
}
}
添加发消息
在 _sendMessage
方法中添加发消息代码。
void _sendMessage() async {
if (_chatId.isEmpty || _messageContent.isEmpty) {
_addLogToConsole("single chat id or message content is null");
return;
}
var msg = EMMessage.createTxtSendMessage(
targetId: _chatId,
content: _messageContent,
);
msg.setMessageStatusCallBack(MessageStatusCallBack(
onSuccess: () {
_addLogToConsole("send message succeed");
},
onError: (e) {
_addLogToConsole(
"send message failed, code: ${e.code}, desc: ${e.description}",
);
},
));
EMClient.getInstance.chatManager.sendMessage(msg);
}
添加收消息监听
在 _addChatListener
方法中添加代码。
void _addChatListener() {
EMClient.getInstance.chatManager.addChatManagerListener(this);
}
移除消息监听
在 iniState
方法下方添加代码移除监听:
@override
void dispose() {
EMClient.getInstance.chatManager.removeChatManagerListener(this);
super.dispose();
}
接收消息
接收消息需要对象继承 EMChatManagerDelegate
并实现相关的回调方法,同时将对象加入到监听列表中。
示例代码如下:
class _MyHomePageState extends State<MyHomePage>
implements EMChatManagerListener {
...
@override
void onCmdMessagesReceived(List<EMMessage> messages) {}
@override
void onConversationRead(String from, String to) {}
@override
void onConversationsUpdate() {}
@override
void onGroupMessageRead(List<EMGroupMessageAck> groupMessageAcks) {}
@override
void onMessagesDelivered(List<EMMessage> messages) {}
@override
void onMessagesRead(List<EMMessage> messages) {}
@override
void onMessagesRecalled(List<EMMessage> messages) {}
@override
void onMessageReactionDidChange(List<EMMessageReactionChange> list) {}
@override
void onMessagesReceived(List<EMMessage> messages) {
for (var msg in messages) {
switch (msg.body.type) {
case MessageType.TXT:
{
EMTextMessageBody body = msg.body as EMTextMessageBody;
_addLogToConsole(
"receive text message: ${body.content}, from: ${msg.from}",
);
}
break;
case MessageType.IMAGE:
{
_addLogToConsole(
"receive image message, from: ${msg.from}",
);
}
break;
case MessageType.VIDEO:
{
_addLogToConsole(
"receive video message, from: ${msg.from}",
);
}
break;
case MessageType.LOCATION:
{
_addLogToConsole(
"receive location message, from: ${msg.from}",
);
}
break;
case MessageType.VOICE:
{
_addLogToConsole(
"receive voice message, from: ${msg.from}",
);
}
break;
case MessageType.FILE:
{
_addLogToConsole(
"receive image message, from: ${msg.from}",
);
}
break;
case MessageType.CUSTOM:
{
_addLogToConsole(
"receive custom message, from: ${msg.from}",
);
}
break;
case MessageType.CMD:
{
// 当前回调中不会有 CMD 类型消息,CMD 类型消息通过 `EMChatManagerListener#onCmdMessagesReceived` 回调接收
}
break;
}
}
}
}
运行项目
以 iOS 为例,首先打开模拟器,之后在终端输入。
flutter run
运行结果如下:
参考以下步骤发送和接收文本消息:
- 输入任意用户名(如
flutter001
和flutter002
)和密码1
,点击SIGN UP
创建用户; - 以
flutter001
身份登录 Demo,将Enter the username you want to send
输如为flutter002
, 发送文本消息;
- 以
flutter002
身份登录 Demo,查看 Log 信息确认是否都到消息。
后续步骤
为保障通信安全,在正式生产环境中,你需要在自己的 app 服务端生成 Token。详见使用 Token 鉴权。
